Mixing system POWER ROLL SYSTEM The compact mixing system

Mixing system
POWER ROLL

The compact mixing system
Mixing system POWER ROLL SYSTEM The compact mixing system

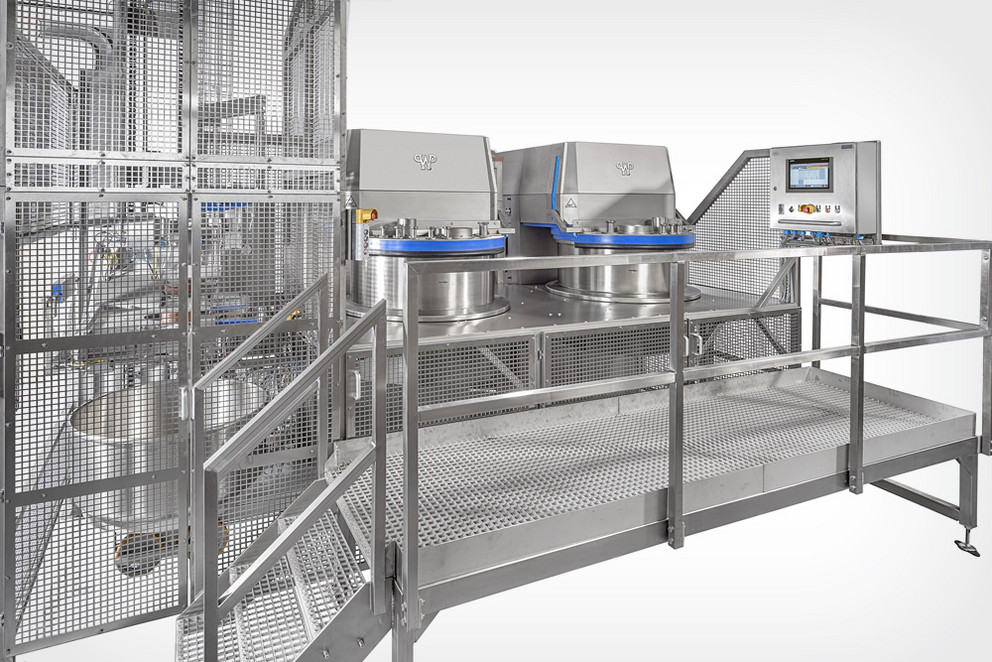

The POWER ROLL SYSTEM is a powerful base discharge mixing system. Up to three POWER MIXERs discharge the dough into a bowl that is transferred to a downstream head machine via a bowl tipper. Reproducible doughs are created quickly and fully automatically.

Machine variants

Mixing system POWER ROLL SYSTEM 1x

POWER ROLL SYSTEM 1x

1 POWER MIXER
Bowl transport system
Bowl tipper HK 200

Up to 2,400 kg dough per hour

Mixing system POWER ROLL SYSTEM 2x

POWER ROLL SYSTEM 2x

2 POWER MIXER
Bowl transport system
Bowl tipper HK 200

Up to 4,800 kg dough per hour

Mixing system POWER ROLL SYSTEM 3x

POWER ROLL SYSTEM 3x

3 POWER MIXER
Bowl transport system
Bowl tipper HK 200

Up to 6,000 kg dough per hour

Further variants

Our machines and lines are modular and individually adaptable to your needs. Talk to us, we would be happy to configure your project together with you.

Advantages and benefits of the mixing system POWER ROLL
For high quality doughs

Fast

Short cycle times due to a large base discharge opening

Safe

High process reliability due to reproducible doughs, a robust design and monitoring system

Dough quality

High dough quality due to an excellent mixing effect and high water absorption



Clean

Smooth surfaces and easy cleaning of the fixed bowl

Efficient

Easy operation due to clear recipe control and low staff requirements



KEMPER 3-zone mixing principle

All POWER MIXER are equipped with a single spiral or double spiral and guide bar. The resulting air turbulance adds more oxygen to the dough, producing airy and dry doughs in reproducible quality.

Capacity

Kemper Mixing – bowl with dough
0

Number of mixers

1-3 (more on request)

0

High dough capacity

Up to 6,000 kg dough / hour

0

Short cycle time

Up to 4 minutes and the dough resting time is 3 minutes

Equipment and options mixing system POWER ROLL
The powerful mixing system

We develop and build all our production lines and machines completely in our own company. The decisive performance features of our lines are their high functional reliability, their excellent profitability, and the consistently high quality of all products they make.

POWER MIXER spiral mixer

  • Single spiral or double spiral made of stainless steel
  • Guide bar made of stainless steel

Bowl cover

  • Incl. safety ring with a protective switch
  • Layout of the connections for automatic raw material supply can be customized

Bowl

  • Fixed bowl made of stainless steel
  • Large diameter base opening
  • Bowl wall scraper, can be folded down for cleaning

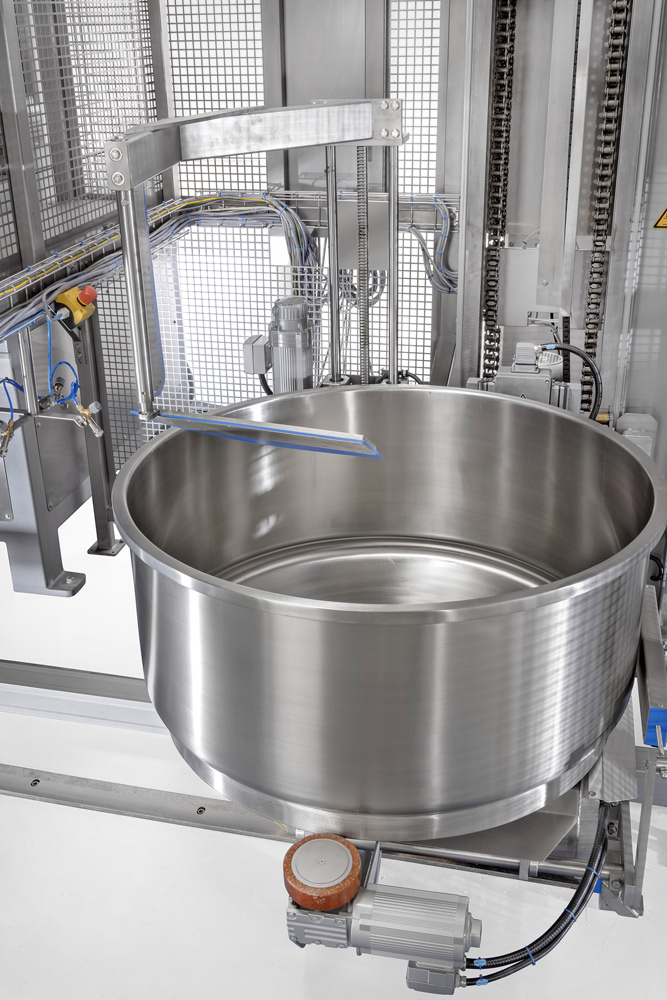

HK 200 bowl tipper

  • Space-saving column design for charging the following head machine

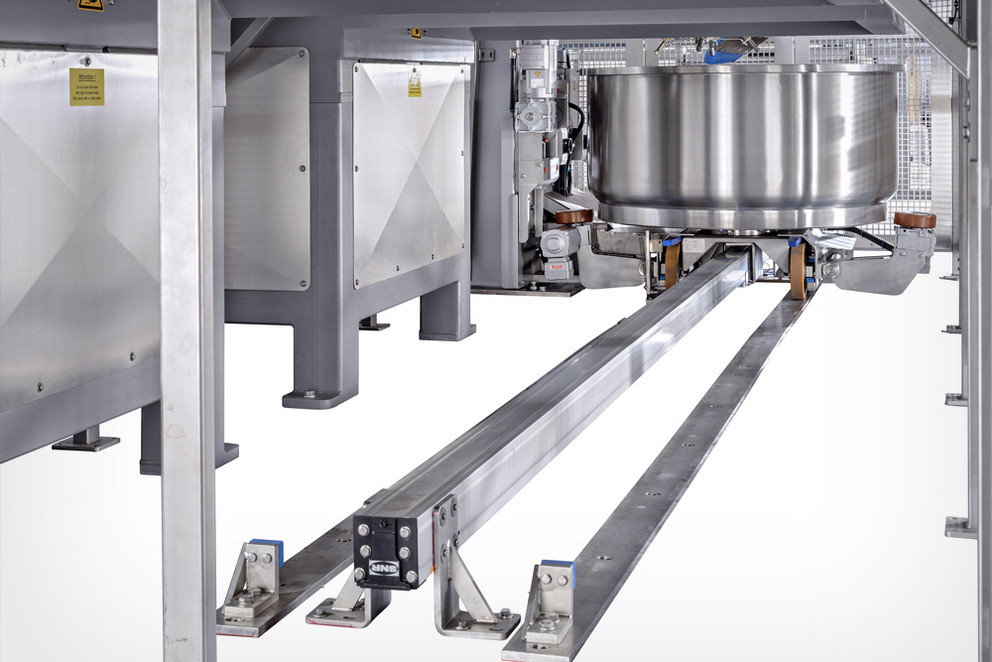

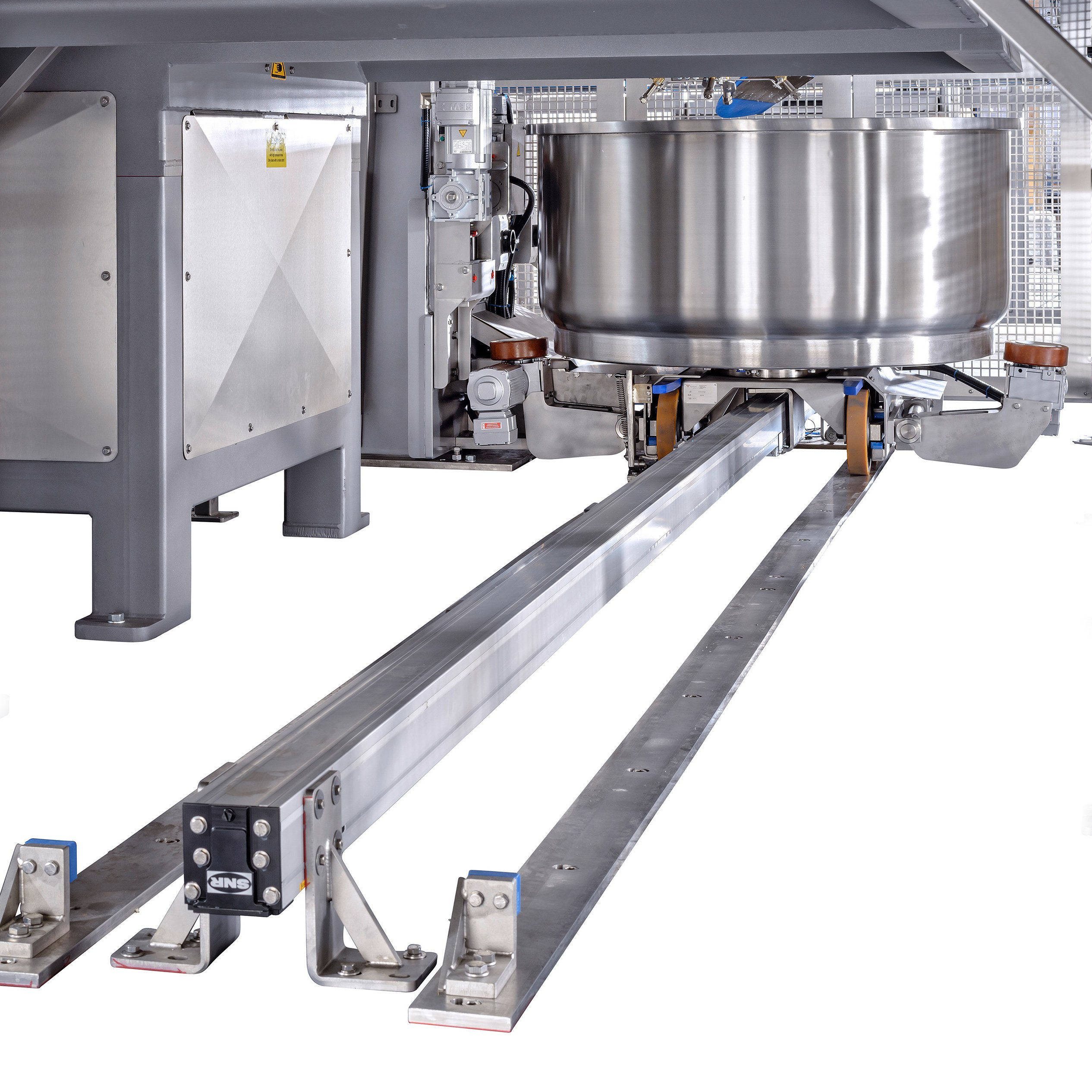

Bowl transport system

  • Rail system
  • Movable carriage with swivel-mounted bowl made of stainless steel
  • The transport of the traversing carriage takes place automatically

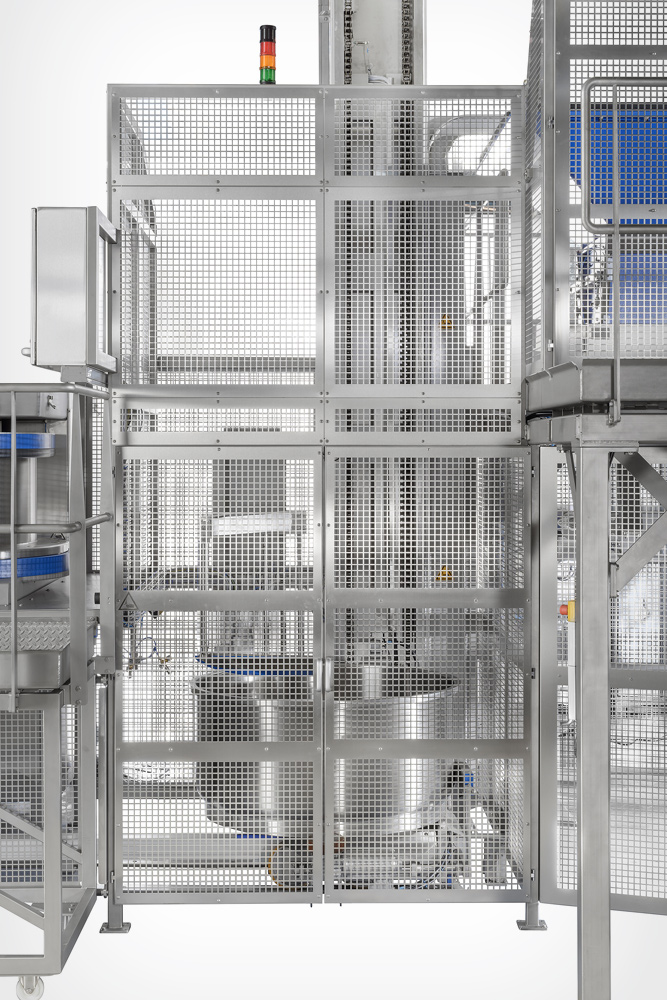

Protective enclosure

  • All-round protective enclosure with limit switch protected doors

Operation

  • Touch panel with menu navigation and process visualization

Options

  • Interface for dosing
  • Prepared for connection to a superordinate control system
  • Bowl scraping for the bowl tipper
  • Portioning hopper
  • KEMPER KEY access control

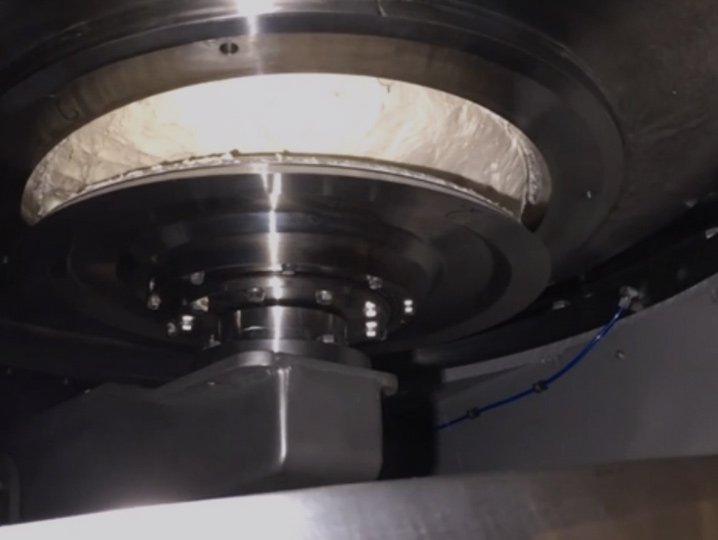

Large diameter base opening

for a quick dough discharge




Product variety

The fully automatic POWER ROLL SYSTEM produces large amounts of dough in particularly high quality. This is possible thanks to the Kemper 3-zone mixing principle.

Wheat doughs

Mixed wheat doughs
