Divider and rounder SOFT STAR CT

Divider and rounder
SOFT STAR CT

The powerful dough dividing and moulding machine
Divider and rounder SOFT STAR CT

The powerful SOFT STAR CT dough dividing and moulding machine produces dough pieces with very high quality and weight accuracy in a particularly efficient manner. It is optimally designed for processing small baked goods dough, also with particularly high dough absorption rates and bowl rest.

Simple handling thanks to particularly good ergonomics, great accessibility for cleaning and easy-to-change parts complete the profile of the SOFT STAR CT as a comfort dough divider. With powerful drives and a robust design, the SOFT STAR CT fulfills all the requirements that are necessary for use in multi-shift operation.

Machine variants

Divider and rounder SOFT STAR CTi 6 rows

SOFT STAR CT 6 rows

800 mm working width
18,000 pieces / hour

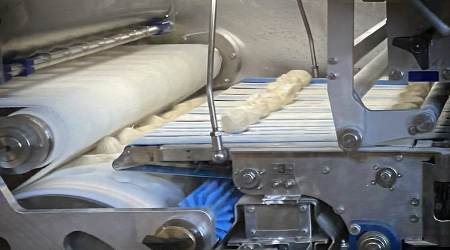

Divider and rounder SOFT STAR CTi 8 rows

SOFT STAR CT 8 rows

1,000 mm working width
24,000 pieces / hour

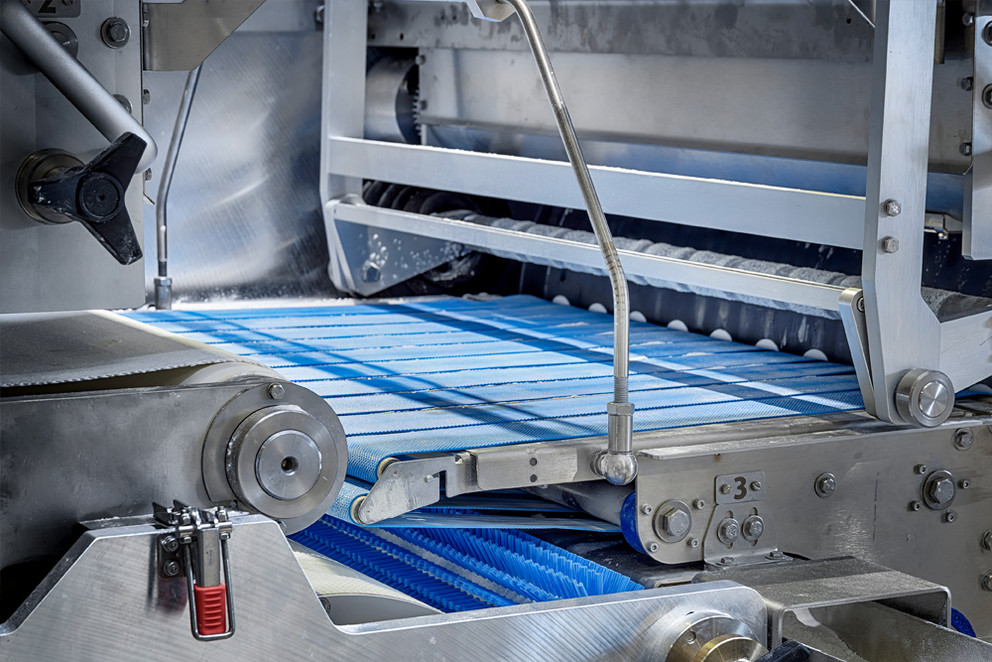

Divider and rounder SOFT STAR CTi 10 rows

SOFT STAR CT 10 rows

1,200 mm working width
30,000 pieces / hour

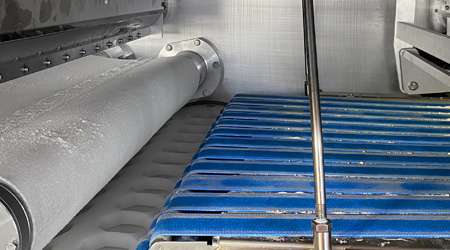

Divider and rounder SOFT STAR CTi 12 rows

SOFT STAR CT 12 rows

1,200 mm working width
36,000 pieces / hour

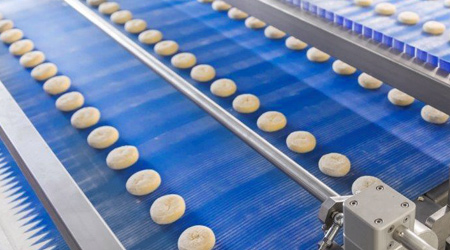

Divider and rounder SOFT STAR CTi 16 rows

SOFT STAR CT 16 rows

1,200 mm working width
48 pieces / hour

Divider and rounder SOFT STAR CTi variants

Further variants

Our machines and lines are modular and individually adaptable to your needs. Talk to us, we would be happy to configure your project together with you.

Advantages and benefits of the head machine SOFT STAR CT
Hygienic and weight accurate

Safe

Powerful machine for a safe process flow

Saves resources

Very high weight accuracy of +/- 1g saves resources

Accessible

Dough processing area easily accessible for easy cleaning



Gentle

Very gentle dividing

High-quality

Precise rounding of all doughs ensures your high product quality

Robust

Robust design for safe use in 2-shift operation

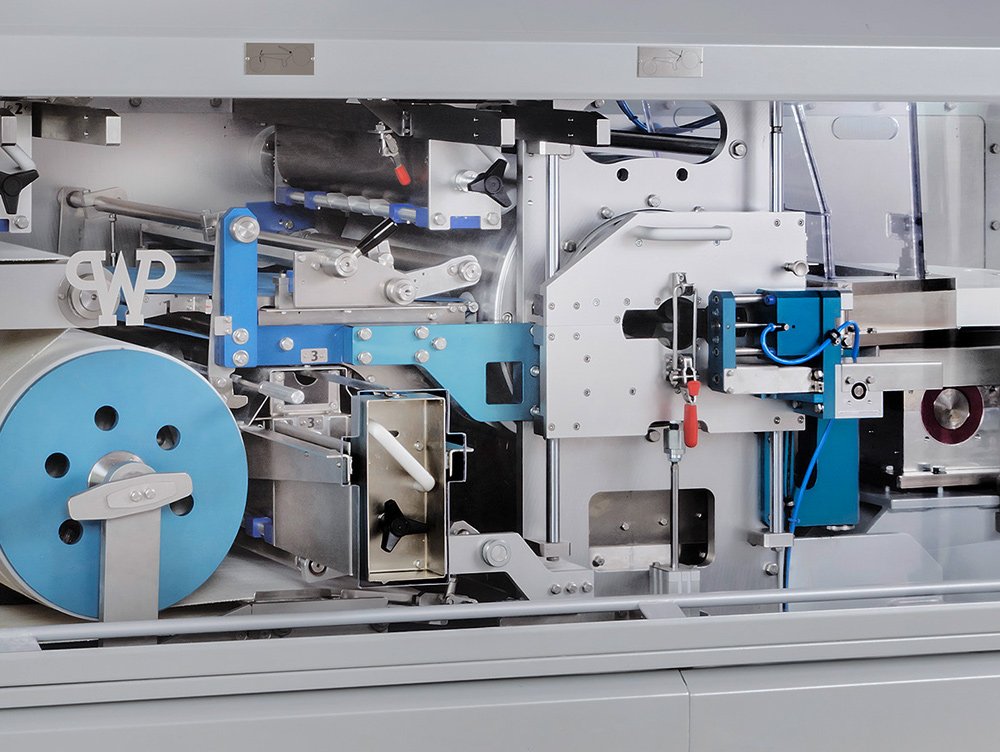

Particularly easy to clean

As in the SOFT STAR CT the drive and dough processing areas are separate and all parts that come into contact with dough are easy to reach. Flour collection drawers and a large ground clearance simplify cleaning of the SOFT STAR CT.

Divider and rounder SOFT STAR CT easy cleaning

Capacity

Round dough balls
0

Pieces

3.000 pieces/row
up to 48,000 pieces/hour

0

Tons

up to 3 tons
dough throughput/hour

0

Piece weight

20 - 135 g piece weight
Mono measuring drum

0

Piece weight

10 - 147 g piece weight
Multi measuring drum

Equipment and options of the head machine SOFT STAR CT
For gently processed dough balls

We develop and build all our production lines and machines completely in our own company. The decisive performance features of our lines are their high functional reliability, their excellent profitability, and the consistently high quality of all products they make.

Preportioner

The continuous dough feeding is done by two pairs of rollers and star rollers. The preportioner can be moved for cleaning and maintenance purposes.



Intermediate hopper

Can be removed for easy cleaning and automatically locks in place once inserted.

Intermediate belt

The intermediate belt between the measuring drum and the moulding drum gives the dough a short relaxation phase for a better moulding result.

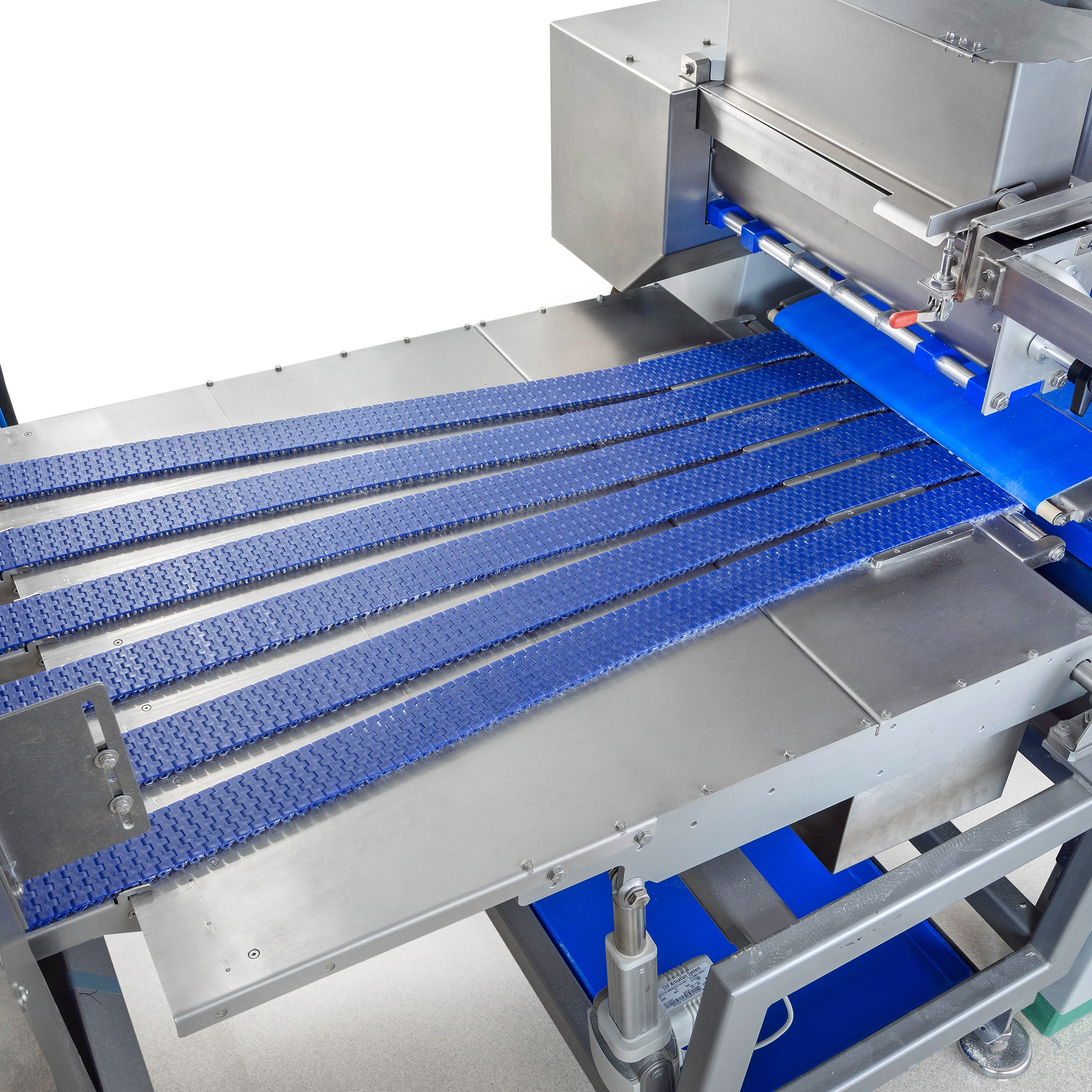

Spreading belt attachment

For the transport of the moulded dough balls to following modules. Spreading belt spacing adjustable. The height can be adjusted for the bypass of the pre-proofer.

Feeding piston

Infinitely variable pressure protects the dough. The feeding piston can also be removed for cleaning.

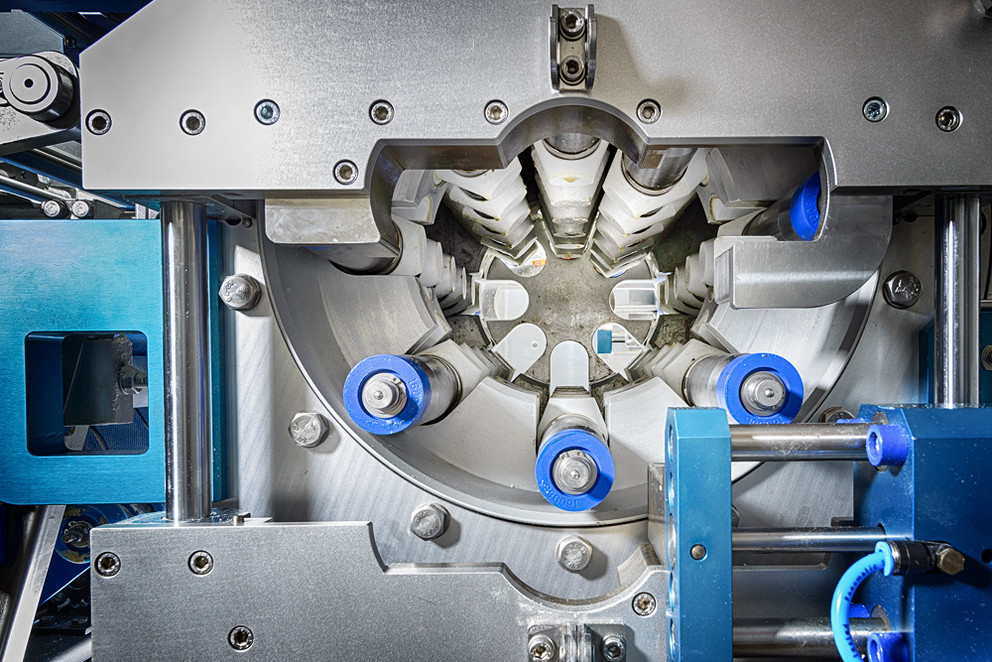

Measuring drum

Can be designed as a mono measuring drum with one or as a multi measuring drum with two weight ranges. A particularly high weight accuracy is achieved by a special process during the dividing process, and by using the mouthpiece, the dough is gently divided without a pressing surface. The particularly large opening of the measuring drum makes it easily accessible for cleaning.

Moulding drum

Large diameter moulding drum for an extended moulding time and two moulding revolutions ensure an optimal moulding result and relaxed dough balls. The moulding drums can be changed without tools.

Flour duster

Open flour duster for controlled flouring of the dough pieces

Options

  • Block off for one or both outer rows
  • Transparent intermediate hopper
  • Removable intermediate belt for an easy cleaning
  • Pressure roller and centering unit on the spreading belt attachment
  • Electrically height adjustable spreading belt attachment
  • KEMPER KEY access control
  • Accessory trolley for storing moulding drums etc.
  • Automatic lubrication of the gearbox
  • Additional oiling of the dough chamber for the use of very soft doughs
  • Drainage holes for the base of the drive area

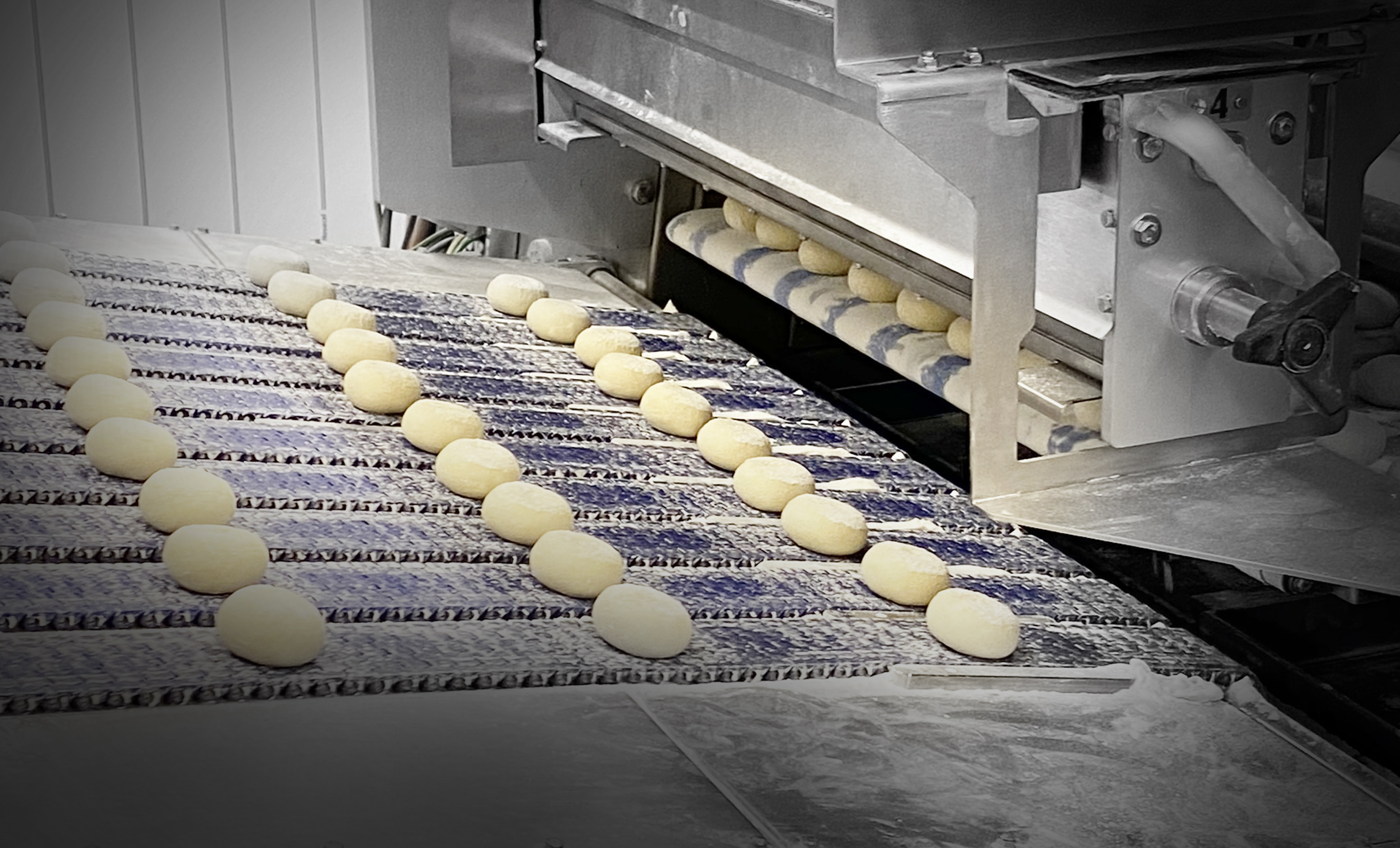

Precise moulding results

and weight-accurate dough pieces for consistent products and a reliable production process

Divider and rounder SOFT STAR CT precise round moulding

Product variety

Due to its special type of dough feeding and conveying, the SOFT STAR CT is optimally suited to meet the high demands of all, but also very soft doughs and to process them gently and with exact weights.

Round dough balls

Round dough balls
